TE2

What This Means — For Quick Client Selection

  • If hygiene + embedded sensing are critical → TE2 is the correct model
    No thermowell → direct contact sensing → faster feedback → tighter pasteurization control.
  • Faster reaction during temperature swings
    Perfect for HTST pasteurizer rise/fall, fermentation cooling loops, and sterilization cycles.
  • Audit-ready hygienic design
    Electropolished SS316L, EHEDG-grade finish meets food safety, pharma validation, and HACCP norms.
  • No dead-leg crevices
    Direct Tri-Clamp mounting eliminates bacterial trap zones → preferred for dairy CIP audits.
  • Excellent for sterile environments
    Pure steam lines, fermentation jackets, vaccine reactors, beverage aseptic loops.
  • Low drift under thermal stress
    Maintains calibration integrity even after repeated SIP cycles.
Category: Tag: Brand:

Description

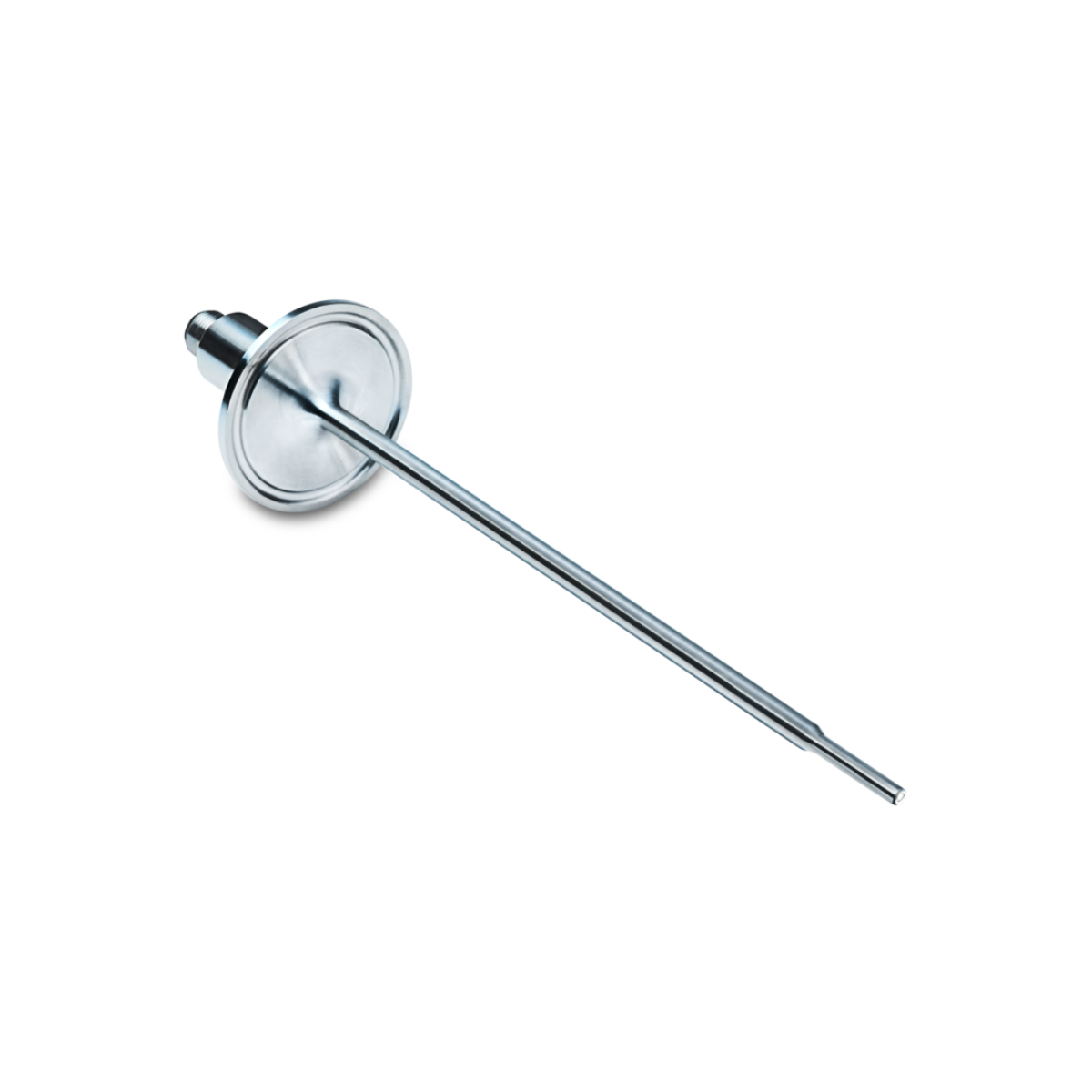

Baumer TE2 is a premium hygienic RTD probe designed for direct food-grade and pharma immersion without a thermowell. It combines Pt100/Pt1000 sensing with Tri-Clamp compatibility, IP69K ingress protection, and sterilization resistance. Ideal for dairy, beverage, biotech, fermentation, and CIP/SIP loops where zero-dead-leg and contamination-free installation are mandatory.

Baumer TE2 — Key Technical Data & Selection Parameters

Parameter Specification / Details
Sensor Type Pt100 / Pt1000, IEC 60751 Class A / 1/3 DIN
Measurement Range –50 °C to +200 °C continuous (SIP up to +150 °C / peak 160 °C)
Accuracy Class A: ±(0.15 + 0.002×t)
Construction Direct sanitary RTD, embedded sensing tip
Process Connection Tri-Clamp TC 1.5″, 2″, dairy SMS, DIN hygienic
Immersion Lengths 50, 100, 150, 200 mm (custom sanitary depths)
Wetted Parts Electropolished SS316L (Ra ≤ 0.8 μm)
Ingress Protection IP67 / IP69K (full washdown ready)
Output RTD element or integrated transmitter (4–20 mA / IO-Link optional)
Cable/Housing Hygienic stainless enclosure / silicone or PTFE cable
Cleanability EHEDG / FDA compliant hygienic standard
Thermal Response Fast sensing due to direct immersion tip (t50 < 3 s)
CIP / SIP Rating SIP: 121–135 °C cycles, CIP: 80–95 °C alkaline wash
Shock/Vibration Stable under pump & agitator vibration due to welded tip
