Description

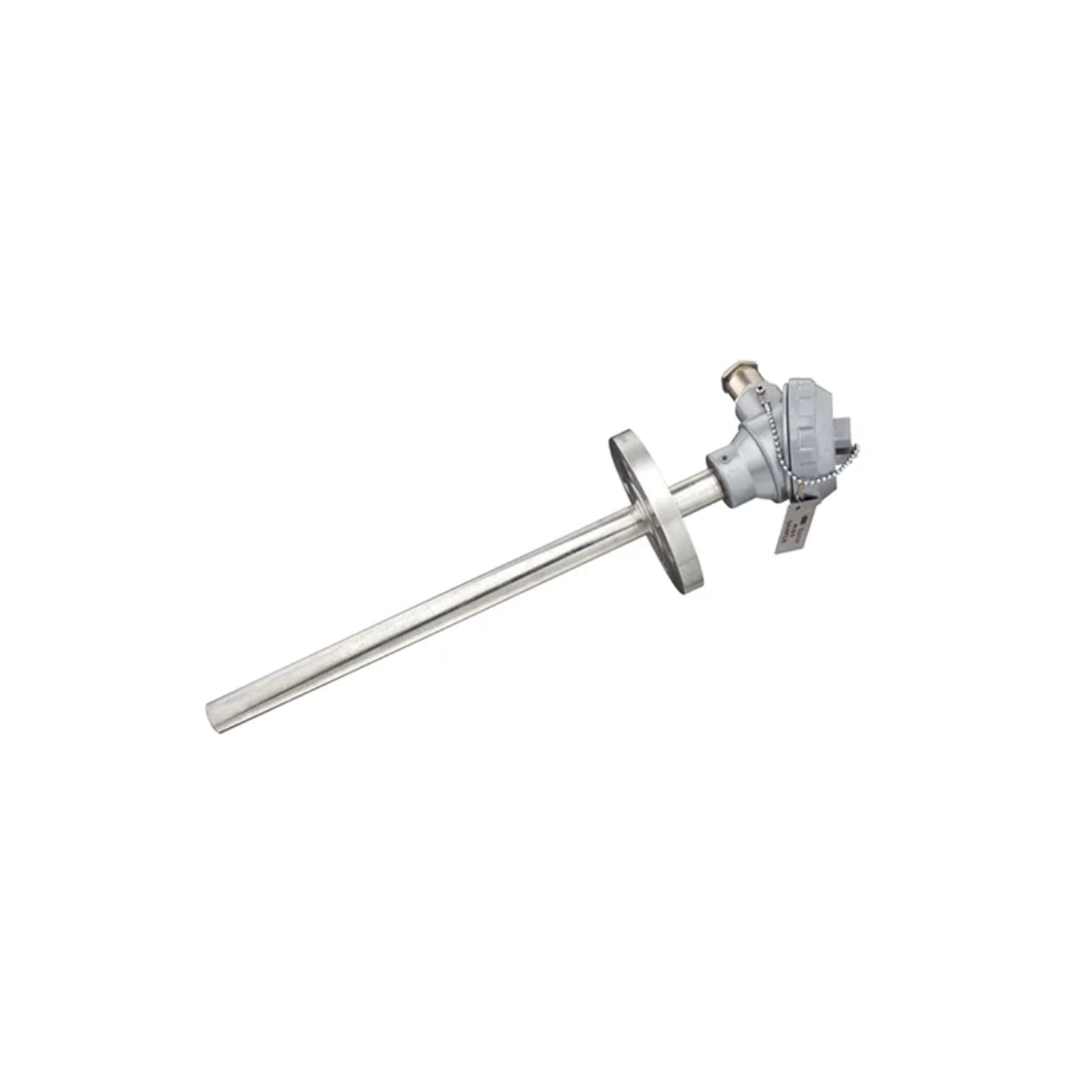

Baumer R01 RTD is a high-accuracy, platinum-based temperature sensor engineered for stable process temperature measurement in steam lines, reactors, HVAC loops, dairy CIP systems, chilled water networks, and chemical heating/cooling circuits. Built to IEC 60751, it offers Class A/B accuracy, vibration-resistant construction, mineral insulated cable options, and interchangeable elements for OEM + process plants requiring reliable and repeatable temperature sensing.
Baumer R01 — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Sensor Type | Pt100 / Pt1000 (IEC 60751 Class A / B / 1/3 DIN available) |
| Measuring Range | –50 °C to +400 °C (extended up to +600 °C depending on sheath) |
| Accuracy | Class A: ±(0.15 + 0.002×t), Class B: ±(0.3 + 0.005×t) |
| Element Configuration | 2-wire / 3-wire / 4-wire |
| Protection Tube / Sheath | SS316L / SS310 / Inconel 600 (for high temp / corrosive duty) |
| Ingress Protection | IP65 / IP67 (with MI cable head) |
| Response Time | t50 < 4 s / t90 < 8 s (in water) |
| Connection Head | DIN Form B, mini head, terminal block, transmitter-integrated |
| Mounting Options | Threaded (½” NPT, ¼” NPT, G½), flange, Tri-Clamp sanitary |
| Thermowell Compatibility | DIN-style, tapered, stepped, barstock, hygienic flush |
| Cable Type | Mineral insulated (MI) / PTFE / PVC / Silicone (as per ambient temp) |
| Optional Electronics | Built-in 4–20 mA loop transmitter or HART/Modbus transmitter |
| Approvals | CE, ATEX optional for explosive zones |
| Shock / Vibration Resistance | Suitable for turbines, compressors, boiler areas |
