Conductivity Meter / TDS Meter – Industrial Analytical Measurement Solutions
Industrial Conductivity and TDS (Total Dissolved Solids) monitoring play a crucial role in water quality management, process control, chemical dosing optimization, and statutory compliance across multiple sectors. Whether it is ensuring RO membrane protection, maintaining boiler feedwater purity, controlling industrial effluent discharge, monitoring CIP rinse stages, or validating chemical concentration, conductivity measurement remains a primary parameter in modern process industries. Using precise conductivity analyzers with temperature compensation and robust electrode technology ensures long-term stability, reduced calibration needs, and accurate dissolved ionic load measurement even under fluctuating flow, high TDS ranges, harsh pH variance, and chemical contamination.
This page covers advanced conductivity/TDS solutions from Forbes Marshall, Hach, and Baumer—the industry’s leading brands known for reliability, innovation, and uncompromised process accuracy.
1. Forbes Marshall – Premium Conductivity/TDS Measurement Solutions
Forbes Marshall instrumentation is preferred across power plants, petrochemical complexes, pharmaceuticals, food & beverage processing, textile dyeing, desalination plants, and municipal water treatment facilities due to its high measurement resolution, configurable range adaptability, robust temperature compensation, and multi-parameter integration capabilities.
Aqua 2 Trans – Compact Series for Utilities & Water Treatment
The Aqua 2 Trans is a compact but highly accurate industrial conductivity and TDS transmitter ideal for DM/RO water, cooling tower cycles, softener outlets, boiler feedwater, and ETP monitoring.
Technical strengths:
- Advanced two-electrode and four-electrode sensor compatibility
- Automatic temperature compensation using PT100/PT1000
- Wide conductivity measurement range (μS/cm to mS/cm)
- Scalable 4–20 mA output for PLC/SCADA connectivity
- Drift-compensated signal processing with noise-immune electronics
It ensures stability in feedwater, softened water, and moderately conductive effluent streams where ionic load frequently changes due to seasonal water variations.
Aqua 2000Pro – High-Performance Conductivity Analyzer for Process Plants
The Aqua 2000Pro series is designed for high-load conductivity and TDS applications such as:
- RO permeate/Reject line monitoring
- Cooling tower blowdown control
- Chemical dosing skids
- CIP/SIP validation
- Neutralization tanks
- High-TDS brine lines
Technical highlights:
- Multi-range conductivity measurement (0.1 μS–200 mS/cm)
- Digital filtering for turbulence compensation
- Temperature index correction per international conductivity standards
- Electrode fouling diagnostics
- Programmable relay outputs for automatic chemical control
The Aqua 2000Pro is widely used in dairy, textiles, breweries, boiler houses, pharmaceutical utilities, chemical plants, and large STP/ETP installations.
Aqua 4Trans – Multi-Parameter, Advanced Conductivity Controller
The Aqua 4Trans series is a higher-end instrument known for:
- Dual-parameter support: pH + Conductivity or ORP + Conductivity
- High-accuracy error correction using conductivity linearization
- Graphical display with real-time trending
- Intelligent electrode aging detection
- Modbus/Profibus industrial communication
Aqua 4Trans is most effective where precise ionic profiling is required—such as ultrapure water circuits, metal finishing processes, CIP rinse verification, reactor balancing, and high-end effluent discharge compliance.
SmartPro 8966 – Digital Conductivity Platform for High-Purity Applications
The SmartPro 8966 is designed for modern industries requiring:
- Extremely high accuracy in low-conductivity ranges (for WFI and USP water)
- Multi-channel operation
- Predictive sensor maintenance
- Ultrastable temperature compensation logic
This model is used in:
- Pharmaceuticals (WFI, purified water, clean steam)
- Food and beverage production
- Microelectronics
- Desalination and demineralization plants
- Advanced testing laboratories
Its digital probes ensure high repeatability and long life even in aggressive washdown or CIP environments.
2. Hach GLI Pro – Global Leader in Conductivity Measurement
Hach GLI Pro conductivity systems are respected worldwide for:
- Differential conductivity measurement
- Fouling-resistant cell construction
- High chemical compatibility
- Stable output under wide temperature & pH variations
The GLI Pro conductivity analyzer is widely used in:
- ETP/STP aeration basins
- Textile effluent streams
- RO pre/post treatment
- Caustic and acidic bath concentration monitoring
- Drinking water distribution networks
Their differential electrode system ensures:
- Lower calibration frequency
- Minimal electrical interference
- Superior performance in high-silt or high-alkalinity media
GLI Pro is the preferred solution in demanding industries such as fertilizers, refineries, power plants, and heavy chemical manufacturing.
3. Baumer – High-Accuracy Conductivity & TDS Sensors for Hygienic & Industrial Use
Baumer’s conductivity analyzers are highly trusted in pharmaceutical, food-grade, beverage, chemical, and wastewater applications for their advanced electronics, hygienic designs, and stable output architecture.

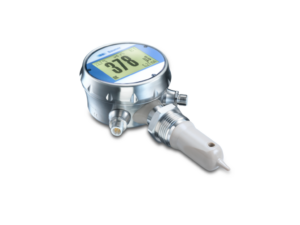

AFI4 – Industrial Conductivity Meter
Baumer AFI4 is engineered for industrial-grade conductivity measurement with:
- High-precision contact sensors
- Stable cell constant performance
- Automatic cell factor adjustment
- Temperature-compensated conductivity measurement
It excels in RO plants, effluent streams, process utilities, water treatment plants, and intermediate chemical mixing lines.

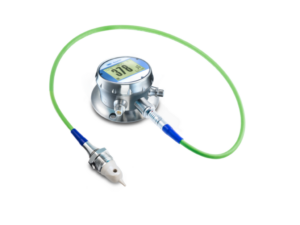

AFI5 – Hygienic Conductivity Measurement for F&B and Pharma
The AFI5 is built for hygienic-grade conductivity measurement:
- EHEDG-compliant designs
- Stainless steel 316L body
- CIP/SIP resistant construction
- Ultra-fast response time
It is commonly used in:
- Dairy pasteurization
- Beverage and brewery fermentation
- Process hygiene monitoring
- CIP detergent concentration validation
With its smooth surface finish and FDA-approved sealing materials, AFI5 ensures complete contamination-free operation in critical food and pharma applications.

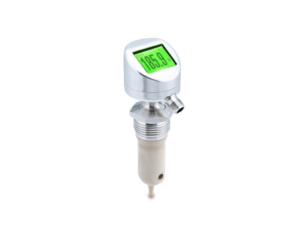

PAC50S – Integrated Conductivity/TDS Transmitter
Baumer PAC50S combines sensor + transmitter + display in one compact module.
Key advantages:
- Ideal for skid-mounted systems
- Cost-effective yet precise conductivity measurement
- IP67 rugged enclosure
- Direct PLC/SCADA integration
It is used in chemical dosing skids, compact DM/RO plants, and packaged effluent systems.

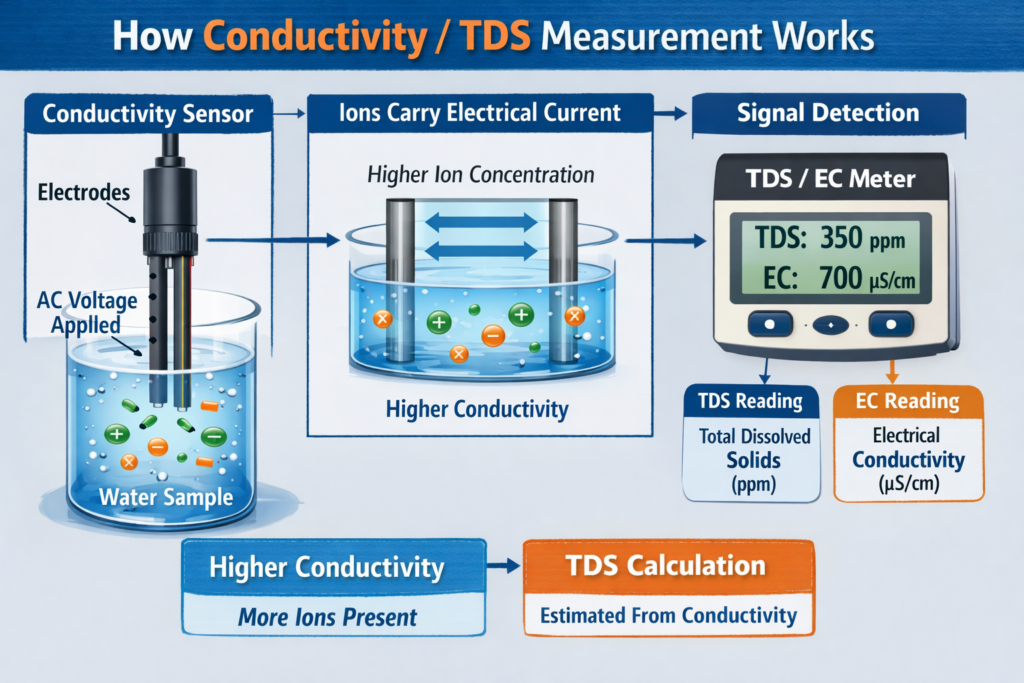

Technical Understanding – How Conductivity/TDS Measurement Works
Conductivity meters work by measuring the electrical conductivity of water, which represents the ionic concentration. The higher the dissolved salts and minerals, the higher the conductivity.
Key Engineering Factors:
- Cell Constant (K-factor):
Defines measurement range—K=0.1, K=1.0, K=10 based on application. - Electrode Material:
SS316, graphite, titanium, or platinum depending on chemical exposure. - Temperature Compensation:
Since conductivity changes ~2% per °C, ATC is essential. - Signal Conditioning & Filtering:
Critical for noise-heavy industrial environments. - TDS Calculation:
TDS = Conductivity × Conversion Factor
(Based on NaCl, KCl, or 442 standards.) - Sensor Geometry:
Determines precision in high-flow or sediment-heavy streams.
Where Conductivity/TDS Measurement is Critical
Sector | Application |
Power Plants | Boiler feedwater purity, condensate return, cooling tower cycles |
Pharma & Biotech | WFI compliance, purified water loops, CIP rinse validation |
Food & Beverage | CIP chemical strength, product consistency, fermentation control |
Textile & Dyeing | Dye bath concentration, wastewater discharge compliance |
Chemical Plants | Brine concentration, acid/alkali preparation, solvent purity |
Municipal STP/ETP | Aeration tank control, clarifier monitoring, discharge TDS |
RO/DM Plants | RO membrane protection, hardness monitoring, regeneration control |
Refineries & Petrochemicals | Sour water, stripping units, cooling tower TDS control |
Why These Instruments Improve Plant Performance
- Chemical optimization
Prevents overdosing, reduces cost, improves neutralization efficiency. - Asset protection
Controls scaling, corrosion, and deposition on heat exchangers & boilers. - Energy efficiency
Proper water chemistry improves heat transfer and reduces power consumption. - Process consistency
Stable ionic load ensures uniform product quality in foods, beverages, dyes, and pharma.
- Safety & compliance
Meets discharge norms, reduces risk of regulatory penalties.
