🧪 What This Data Means — For Quick Client Selection

  • Selectable cell constants let you use one transmitter for ultra-pure water (K=0.01) up to wastewater (K=10) — highly versatile for RO, DM, and ETP applications.

  • Automatic temperature compensation ensures accurate readings even when inlet water temperature varies widely.

  • 4–20 mA isolated output gives noise-free transmission to PLC/SCADA, improving measurement stability.

  • TDS derived from conductivity saves cost—no need for a separate TDS meter.

  • IP65 enclosure allows safe outdoor use in RO skids, cooling towers, and ETP/STP plants.

  • Inductive sensors are ideal for high fouling or high-TDS media; contact sensors suit clean water and DM applications.

  • Dual calibration modes allow quick field setup with standard buffer solutions.
Category: Tag: Brand:

Description

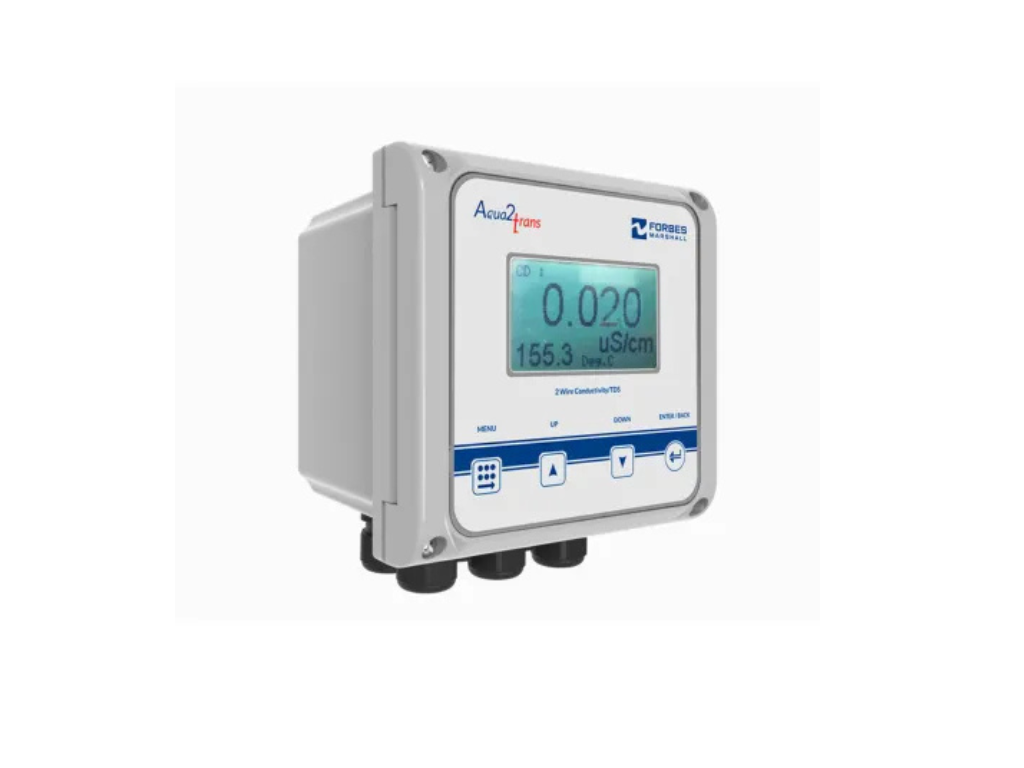

 Aqua 2Trans is a reliable industrial conductivity/TDS transmitter designed for water, wastewater, and utility applications. It offers precise measurement with auto temperature compensation, multiple cell-constant options, isolated 4–20 mA output, and robust construction. Ideal for RO plants, boilers, cooling towers, DM water systems, and process-water quality monitoring.

🔧 Aqua 2Trans — Key Technical Data & Selection Parameters

Parameter Specification / Details
Measurement Range Conductivity: 0–20 mS/cm (with selectable cell constants)
Cell Constants 0.01, 0.1, 1.0, 10.0 (application-specific)
TDS Measurement Derived from conductivity (programmable factor)
Temperature Compensation Automatic NTC/Pt100/Pt1000
Accuracy ±1% of reading (model dependent)
Display Backlit LCD with dual-parameter display
Output 4–20 mA isolated (conductivity/TDS selectable)
Power Supply 24 V DC / 230 V AC options
Enclosure IP65 / weatherproof industrial housing
Calibration 1-point or 2-point conductivity standard solutions
Sensor Type Inductive or contact sensors (application-based)
Process Temperature Up to 85 °C (sensor dependent)
Mounting Panel / wall / field mount
Ideal Applications RO, DM plants, boilers, cooling towers, ETP/STP, process-water monitoring
