Description

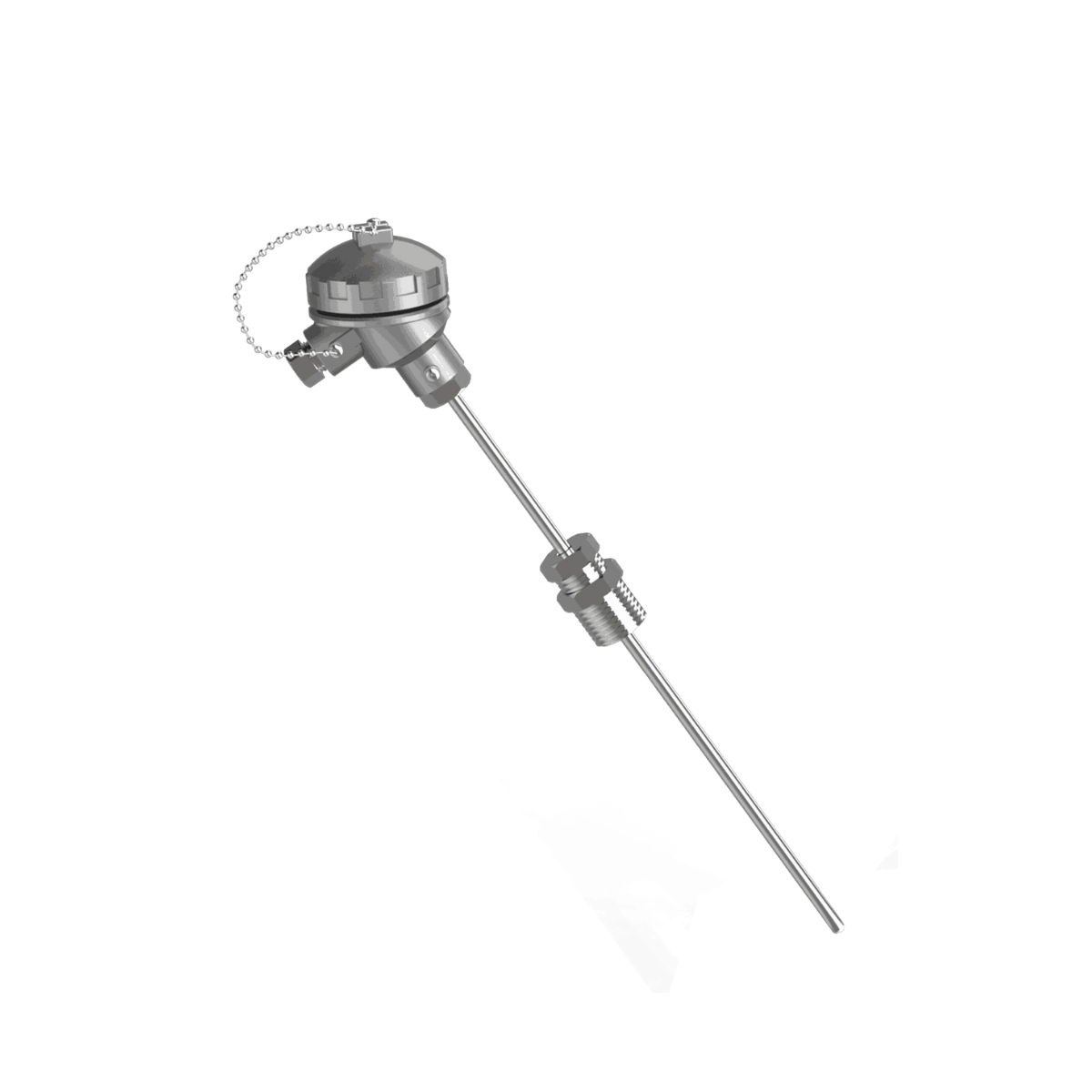

GIC TC101 is a reliable, low-maintenance thermocouple designed for standard industrial temperature measurement in pipelines, boilers, HVAC, ovens, and general utilities. It uses a mineral-insulated sensing element with durable SS sheath, offering consistent response and stable output for routine process temperature monitoring. Ideal for OEM machinery, AHUs, hot water/steam lines, dryers, packaging lines, and oven chambers.
GIC TC101 — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Sensor Type | Thermocouple Type J / K |
| Temperature Range | Type K: 0…+900°C / Type J: 0…+750°C |
| Construction | MI (Mineral-Insulated) compact probe |
| Sheath Material | SS304 / SS316 |
| Probe Diameter Options | 3 / 6 / 8 mm |
| Mounting Options | Threaded (½” BSP/NPT), flanged, compression fitting |
| Junction Type | Grounded (fast response) / Ungrounded (noise immunity) |
| Cable Type | Teflon / fiberglass / armored cable |
| Accuracy Class | IEC 60584 Class 1 |
| Response Time | Fast (due to compact MI sensor) |
| Signal Output | Direct mV (thermocouple) |
| Application Grade | General-purpose industrial temp sensing |
