Description

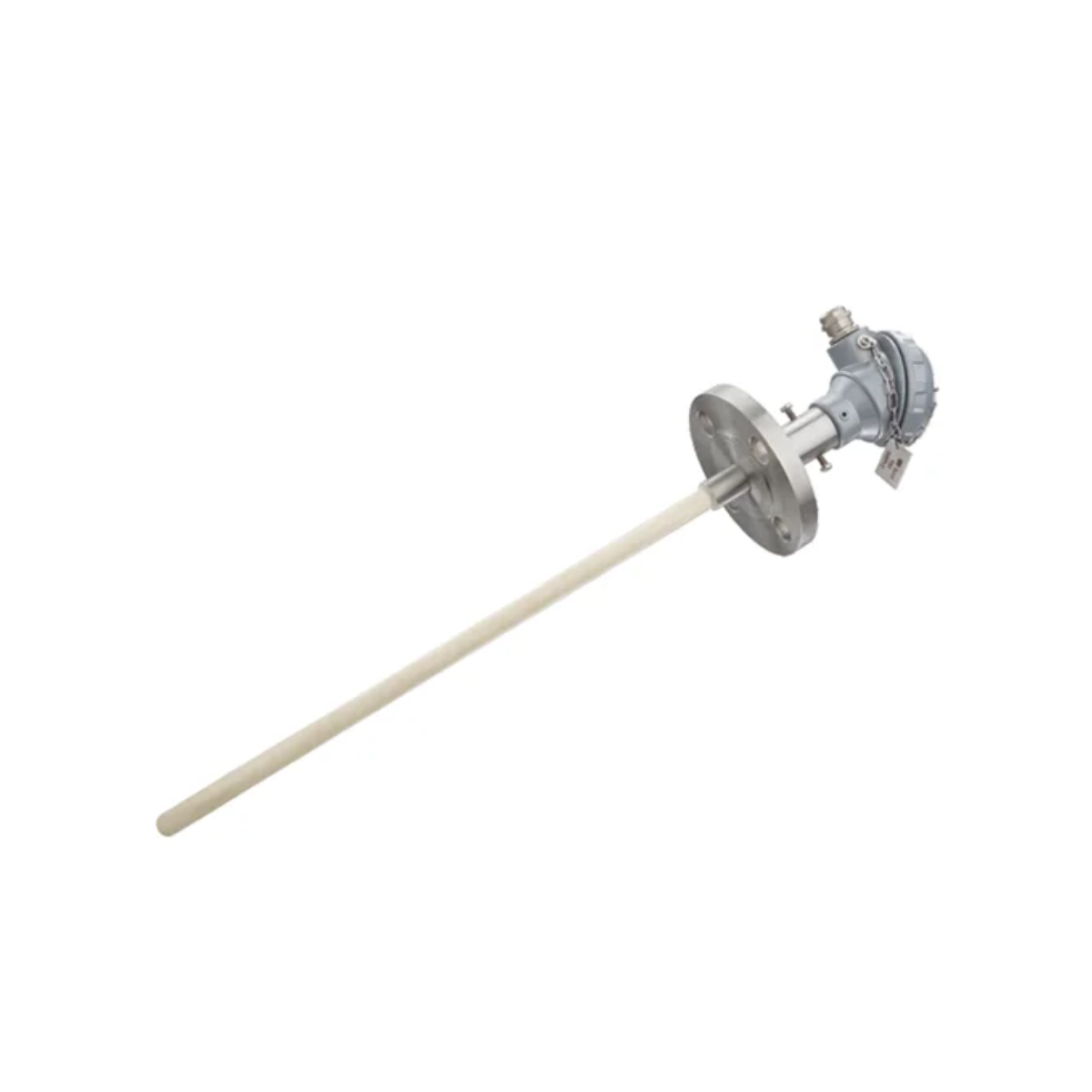

Baumer T02 is a robust, service-friendly thermocouple designed for high-temperature industrial applications where sensors must be replaceable without process shutdown. Built with a removable insert + thermowell assembly, it delivers accurate and durable temperature measurement in boilers, turbines, furnaces, oil heaters, chemical reactors, steam superheaters, and high-pressure vessels. Ideal for demanding utilities and continuous process environments.
Baumer T02 — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Sensor Type | Thermocouple: Type J / K / N |
| Temperature Range | Type K: 0 to +1100 °C / Type J: 0 to +750 °C / Type N: 0 to +1200 °C |
| Construction | Replaceable MI (Mineral-Insulated) insert inside protection thermowell |
| Thermowell Material | SS316 / SS310 / Inconel 600 / Hastelloy C |
| Head Type | IP67 aluminum / SS head / Flameproof Ex d (optional) |
| Process Connection | Flanged (ANSI/DIN), threaded ½″/¾″ NPT / BSP, weld-in |
| Junction Type | Grounded / Ungrounded |
| Wiring Configuration | 2-wire / 3-wire / 4-wire |
| Insertion Length | Customizable (100 mm to 600+ mm) |
| Accuracy Class | IEC 60584 Class 1 / Class 2 |
| Response Time | Moderate (due to thermowell protection) |
| Mounting Style | Thermowell-based, removable insert |
| Cable Entry | PG9 / M16 |
| Application Category | High-temp + high-pressure + corrosive media |
