Description

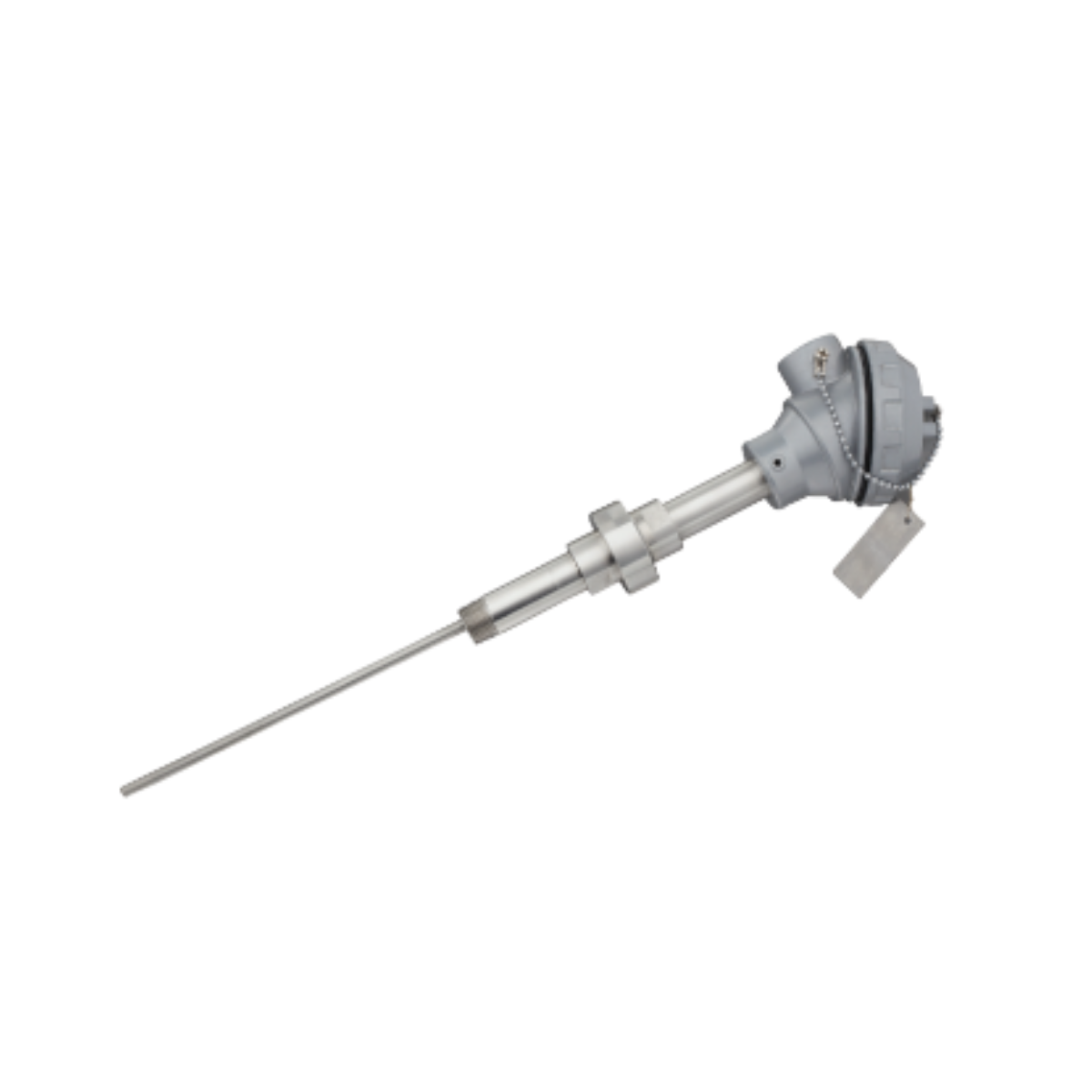

Baumer T01 is a rugged industrial thermocouple engineered for high-temperature measurement in boilers, furnaces, kilns, exhaust stacks, oil heaters, and chemical reactors. Available in Type J, K, and T, it offers fast response, long service life, and stable readings in demanding thermal environments. Designed with SS316/310 sheath, mineral insulation, and explosion-proof head options, T01 ensures accurate monitoring across utilities and process plants.
Baumer T01 — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Sensor Type | Thermocouple: Type J / K / T |
| Temperature Range | Type K: 0 to +1100 °C / Type J: 0 to +750 °C |
| Accuracy Class | IEC 60584 Class 1 / Class 2 |
| Sheath Material | SS316 / SS310 / Inconel (optional for corrosives) |
| Construction | Mineral-insulated (MI) thermocouple |
| Output Wiring | 2-wire / 3-wire / 4-wire |
| Response Time | Fast response due to MI compact build |
| Process Connection | Threaded: ½″ NPT/BSP, welded, flanged |
| Head Type | IP67 aluminum die-cast / flameproof (optional) |
| Junction Type | Grounded / Ungrounded / Exposed |
| Mounting Style | Direct immersion or via thermowell |
| Cable Entry | PG9 / M16 |
| Application Category | High-temperature industrial measurement |
