Description

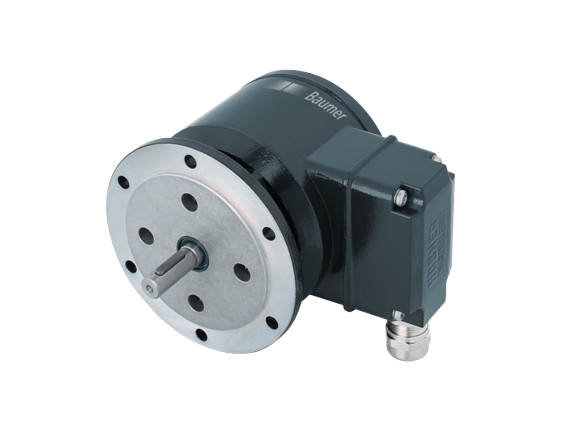

Baumer POG series encoders are extra-robust heavy-duty incremental encoders engineered for extreme mechanical stress, high shaft loads, and harsh industrial environments. With a reinforced housing, oversized bearings, and excellent shock & vibration resistance, POG encoders deliver dependable speed and position feedback in critical applications such as steel mills, cranes, rolling mills, mining, cement plants, and large drives where continuous operation is essential.
🔧 Baumer POG — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Encoder Type | Incremental heavy-duty rotary encoder |
| Sensing Principle | Optical incremental |
| Housing Construction | Reinforced heavy-duty metal housing |
| Shaft Type | Solid shaft (high mechanical strength) |
| Resolution | Up to 5000 PPR (model dependent) |
| Output Signals | A, B, Z (HTL / TTL) |
| Supply Voltage | 5 V DC (TTL) / 10…30 V DC (HTL) |
| Max. Shaft Load | Extremely high radial & axial load capacity |
| Max. Operating Speed | Designed for heavy rotating machinery |
| Shock & Vibration Resistance | Very high (suitable for steel & mining plants) |
| Protection Rating | IP66 / IP67 |
| Operating Temperature | –40 °C to +100 °C (model dependent) |
| Electrical Connection | Cable or terminal box |
| Mounting | Foot mount / flange mount |
| Typical Applications | Cranes, hoists, rolling mills, conveyors, mining |
