Description

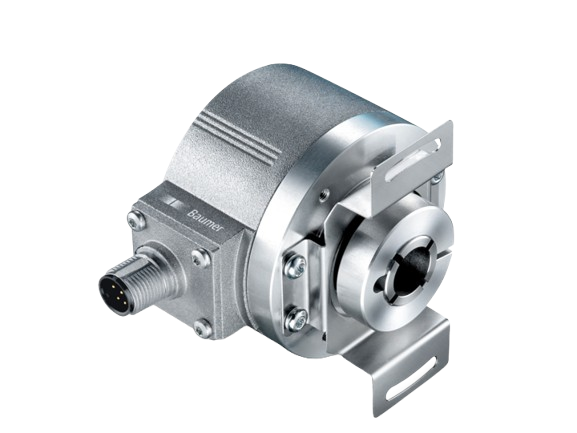

Baumer EIL580 is a heavy-duty incremental rotary encoder engineered for precise speed, position, and direction feedback in demanding industrial environments. Built with a robust Ø58 mm metal housing and high-resolution optical sensing, EIL580 delivers reliable performance under vibration, shock, dust, and moisture. It is widely used in motors, conveyors, cranes, hoists, winders, and general automation systems requiring accurate motion control.
🔧 Baumer EIL580 — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Encoder Type | Incremental rotary encoder |
| Sensing Principle | Optical |
| Housing Diameter | Ø58 mm (industrial standard) |
| Resolution | Up to 5,000 PPR (model dependent) |
| Output Signals | A, B, Z (TTL / HTL – model dependent) |
| Supply Voltage | 5 V DC (TTL) or 10…30 V DC (HTL) |
| Shaft Type | Solid shaft / hollow shaft (variant dependent) |
| Shaft Diameter | Typically 6 / 8 / 10 mm (model dependent) |
| Max. Rotational Speed | High-speed operation suitable for motors |
| Protection Rating | IP65 / IP67 (variant dependent) |
| Housing Material | Aluminum / metal |
| Operating Temperature | –25 °C to +85 °C |
| Electrical Connection | Cable or M12 connector |
| Mounting | Servo flange / clamping flange |
| Typical Applications | Motor feedback, conveyors, cranes, hoists, winders |
