Description

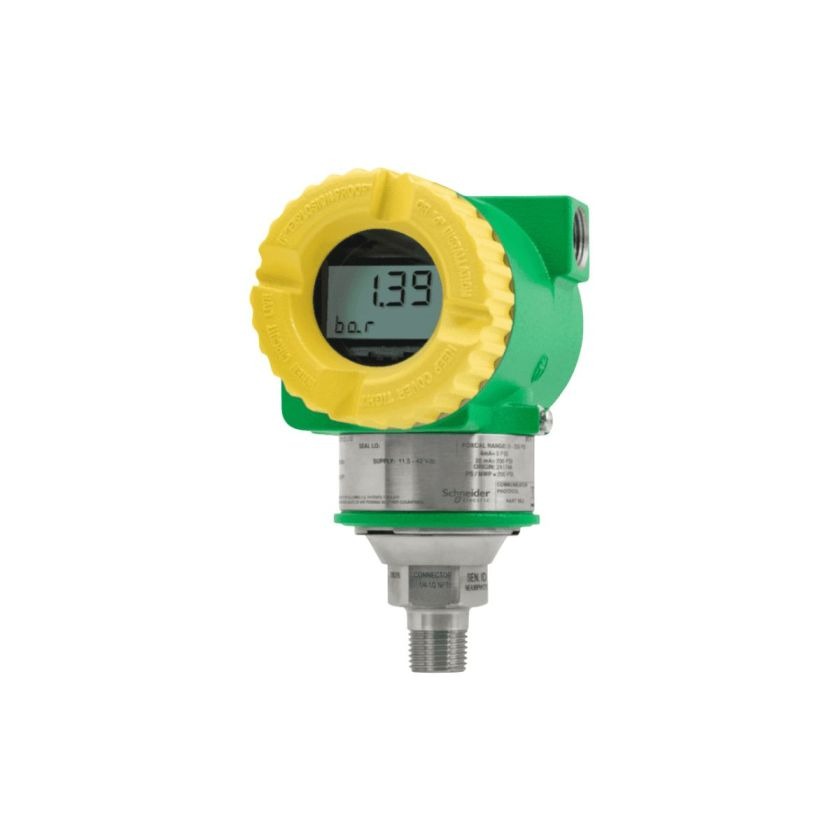

IGP10S is a higher-grade smart pressure transmitter engineered for stable, precision measurement in continuous process duty. Compared to IGP05S, the IGP10S offers enhanced temperature stability, improved long-term drift performance, and wider hazardous-area compliance. Designed for refineries, chemical dosing skids, steam systems, and high-reliability water / gas networks, it supports full HART diagnostics and robust SS316L wetted metallurgy.
IGP10S — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Measurement Type | Gauge / Absolute Pressure |
| Accuracy | ±0.075% of span (high-stability class) |
| Turndown Ratio | Up to 50:1 |
| Output | 4–20 mA + HART |
| Pressure Ranges | 0–0.1 bar to 0–420 bar |
| Stability / Drift | ≤ ±0.1% URL over 10 years |
| Display | Local LCD with bargraph + diagnostics |
| Wetted Materials | SS316L, Hastelloy C, Monel (optional) |
| Process Connections | ½” NPT, flange, hygienic clamp |
| Ingress Protection | IP66 / IP67 |
| Temp Compensation | Digital temperature correction full span |
| Process Temperature | −40 °C to +120 °C |
| Ambient Temperature | −40 °C to +85 °C |
| Explosion Protection | ATEX, IECEx Zone 1 / Zone 2 |
| EMC Protection | IEC 61326 (industrial class) |
| Communication | HART 7, NAMUR NE43 compliant |
| Response Time | < 100 ms |
