IGP05S

IGP05S

What This Data Means — For Quick Client Selection (1-line insights)

  • Utility-grade accuracy (±0.1%) → ideal for non-custody utility lines like air, nitrogen, water, general liquids.
  • Moderate turndown (15:1) → flexible enough for fluctuating pump load & plant startup/shutdown pressure cycles.
  • Corrosion-resistant SS316L wetted parts → safe for cooling water, brine water, and neutral fluids.
  • HART configurability → enables quick re-ranging via handheld / DCS without removing the transmitter.
  • SIL-ready design → can be used in non-critical safety loops where operational reliability is required.
  • Compact footprint → fits skids, OEM modules, pump rooms, and compressor panels easily.
Category: Tag: Brand:

Description

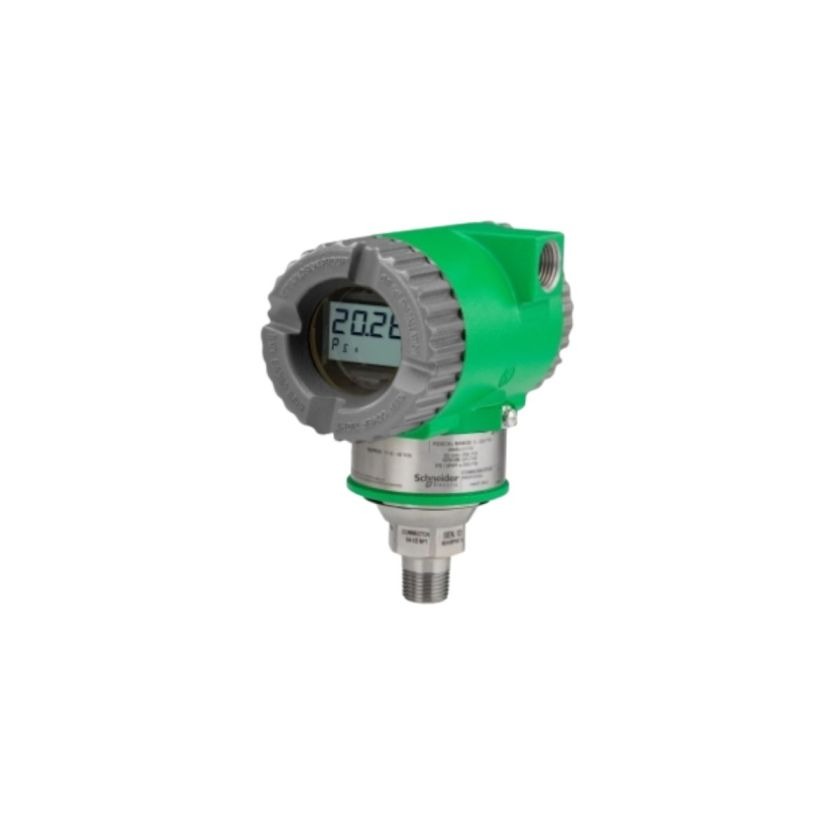

IGP05S is a compact, cost-efficient smart pressure transmitter designed for reliable measurement in general industrial services such as compressed air networks, pump discharge lines, utility water loops, nitrogen headers, and HVAC control. With stable accuracy, configurable HART output, and corrosion-resistant wetted materials, it delivers dependable performance without premium instrumentation cost overhead.

 IGP05S — Key Technical Data & Selection Parameters

Parameter Specification / Details
Measurement Type Gauge Pressure
Accuracy ±0.1% of span
Turndown Ratio 15:1
Output 4–20 mA + HART
Pressure Ranges 0–0.4 bar to 0–400 bar
Display Local LCD with engineering units
Safety Rating SIL2 compliant (application-dependent)
Housing SS316 / Aluminum epoxy-coated
Wetted Parts SS316L, Monel optional
Ingress Protection IP65 / IP66
Process Temperature −40 °C to +100 °C
Ambient Temperature −40 °C to +85 °C
Explosion Protection ATEX Zone 2 variants available
Communication Protocol HART 7
Response Time < 150 ms
