Description

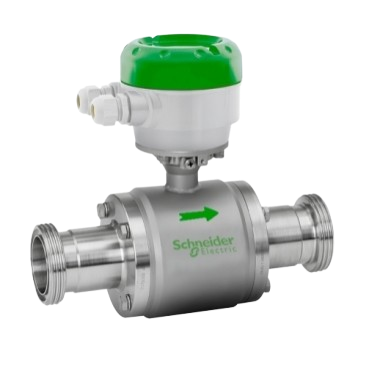

9600A is a high-accuracy industrial transmitter designed for demanding chemical and food-grade applications. Built with corrosion-resistant materials and advanced signal processing, it ensures stable flow/level measurement even with viscosity changes, temperature variation, or process noise. Ideal for hygienic plants, batch processes, and aggressive chemical lines.
| Parameter | Technical Specification |
| Measurement Type | Flow and level for industrial liquids |
| Accuracy | ±0.3% of reading |
| Repeatability | ±0.1% |
| Operating Range | Flow: 0.1–15 m/s; Level: 0–12 m |
| Conductivity Requirement | ≥5 μS/cm (supports low-conductivity food/chemical mediums) |
| Material Options | SS316, PTFE-lined, food-grade hygienic options |
| Temperature Range | –20°C to +120°C (medium-dependent) |
| Outputs | 4–20 mA, Pulse/Frequency, Relay |
| Communication | HART, Modbus RTU, Profibus, Fieldbus |
| Diagnostics | Process noise filtering, coating detection, empty pipe detection |
| Display / Interface | Backlit LCD, keypad, full menu configuration |
| Power Supply | 24 VDC or 90–230 VAC |
| Housing | SS/Aluminium, hygienic or industrial enclosure |
| Protection Class | IP67 / IP69K (hygienic) |
| Approvals | CE, EMC, FDA-compatible materials (optional) |
