Description

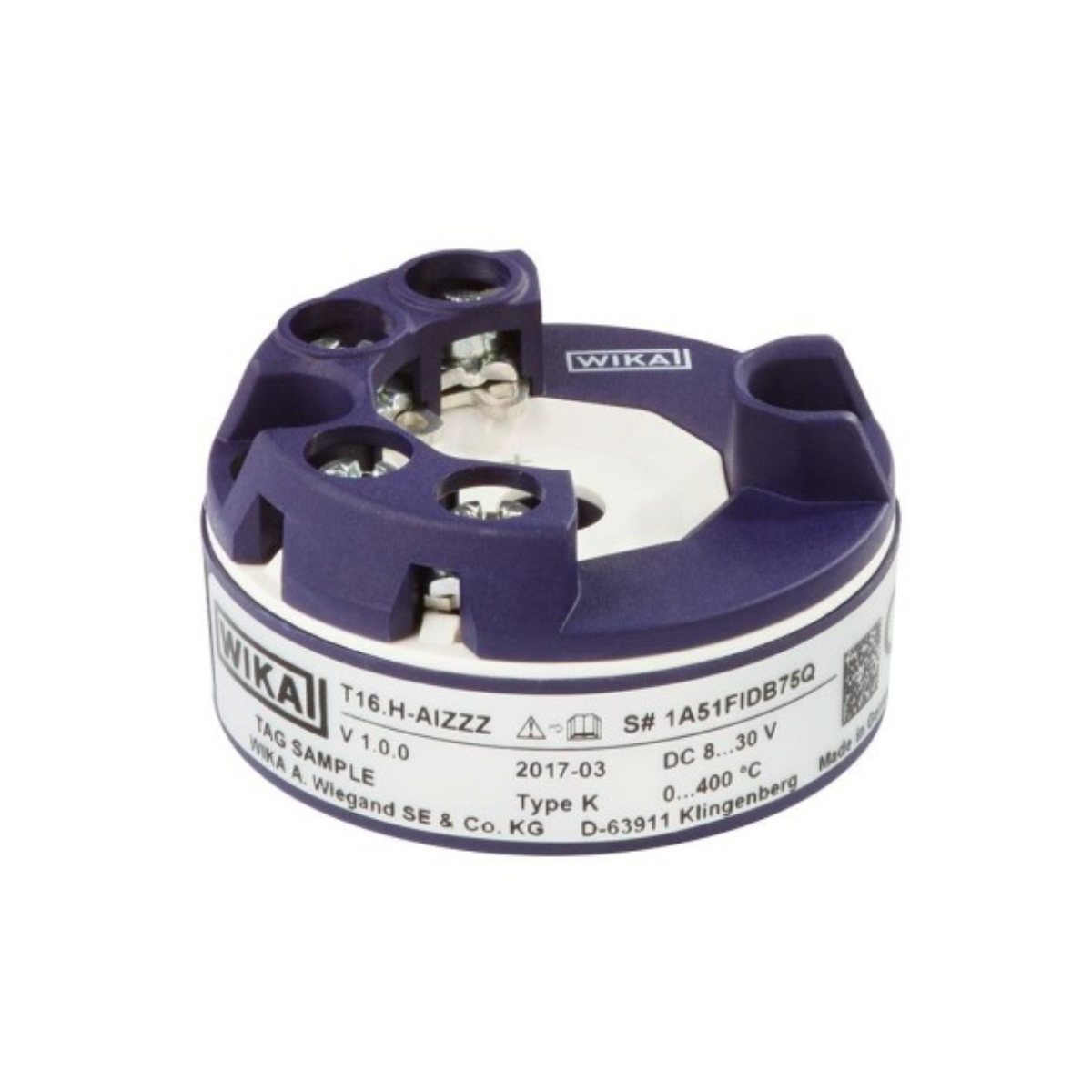

WIKA T16 is a compact DIN head-mount temperature transmitter designed for general-purpose industrial temperature measurement. It accepts RTD and thermocouple inputs and converts them to a stable 4–20 mA signal for PLC/DCS integration. With improved noise immunity and linearized output, T16 is suitable for HVAC, OEM skids, utilities, heat exchangers, cooling towers, chilled water loops, boilers, and basic process heating systems.
WIKA T16 — Key Technical Data & Selection Parameters
| Parameter | Specification / Details |
| Transmitter Type | Head-mount, 2-wire analog transmitter |
| Output Signal | 4–20 mA linearized |
| Input Compatibility | RTD (Pt100, Pt1000), TC (J, K, T, E, N), Resistance & mV |
| Accuracy | ±0.08% of span |
| Ambient Temperature Range | –40 °C to +85 °C |
| Sensor Type Support | 2-, 3-, 4-wire RTD |
| EMC Immunity | IEC 61326 compliance (industrial noise rating) |
| Mounting Style | DIN Form B terminal head |
| Response / Update Time | ≤ 0.5 seconds |
| Power Supply | 10…35 V DC |
| Configuration | Via PC + USB setup interface (WIKAsoft-TT) |
| Housing Protection | Verified EMC shielding, optional ATEX variants depending on model |
| Typical Applications | Utilities, HVAC, cooling towers, OEM temperature skids, heat exchangers, boilers, chilled water circuits |
