S-10

S-10

What This Data Means — Quick Client Selection

  • High accuracy (±0.25%) = high trust in OEM hydraulic machines
     Suitable for critical proportional valves, servo hydraulics, injection molds, pressure skids.
  • Ultra-fast <1 ms response
     Perfect for rapid PLC logic control, interlocks, trip safety & hydraulic shock compensation.
  • Thin-film stainless sensing element = no oil-filled capsule
     Zero leakage risk, stable under vibration, compressor ON/OFF cycling, pressurization fatigue.
  • IP67 sealed variants
     Use in wet CIP environments, washdown corridors, dairy ammonia rooms, dusty compressor halls.
  • Wide range up to 1000 bar
     Makes S-10 suitable for nitrogen charging manifolds, high-pressure hydraulics, press machines.
Category: Tag: Brand:

Description

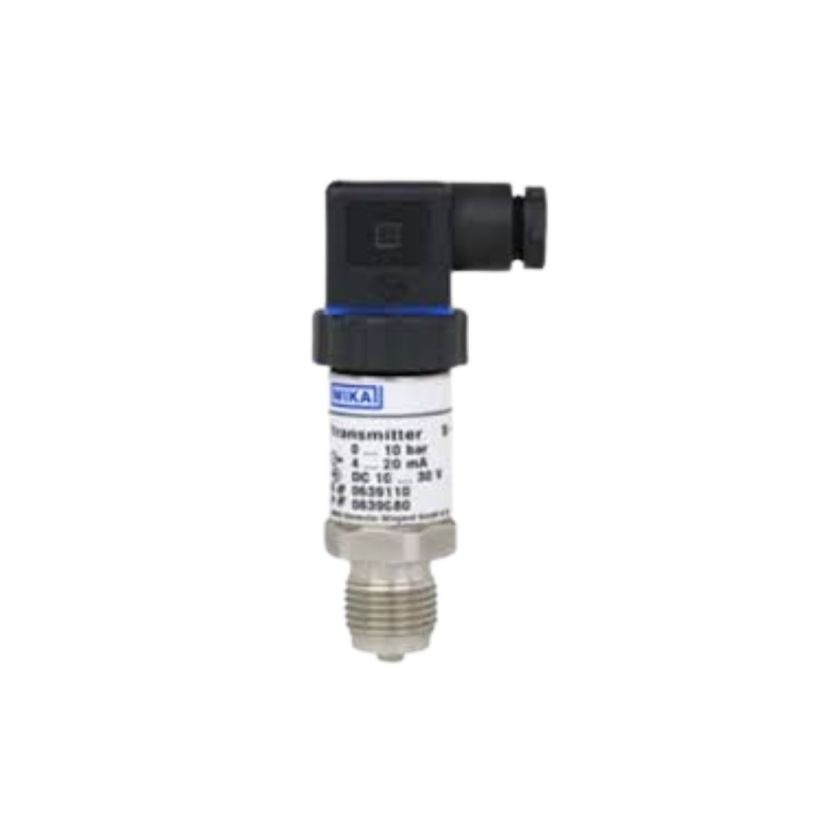

WIKA S-10 is a compact pencil-type pressure transmitter built for tough, fast-cycling hydraulic systems, compressors, pneumatic skids, nitrogen banks, and machine automation. With excellent shock resistance, low drift, and global approvals, S-10 is designed for continuous 24×7 duty where mechanical + temperature stress are high.

WIKA S-10 — Key Technical Data & Selection Parameters

Parameter Specification / Details
Measuring Range 0…1 bar to 0…1000 bar
Accuracy ±0.25% FS (standard), ±0.5% FS (optional)
Sensor Technology Thin-film strain gauge on stainless-steel diaphragm
Output Signal 4–20 mA, 0–10 V, 1–5 V
Electrical Connection DIN, M12x1, Deutsch, Cable
Process Connection G¼, ¼ NPT, M12
Media Compatibility Hydraulic oils, air, nitrogen, glycol, water, mild chemicals
Overpressure Safety Up to 2× full scale
Response Time < 1 ms
Temperature Range (Media) –40 °C to +125 °C
Ingress Protection IP65 / IP67
EMC / Safety Approvals CE, UL, EAC, IECEx (varies by model)
Vibration / Shock 20 g / 100 g
Application Class Heavy-duty industrial, hydraulic control, compressors
