🧪 What This Data Means — For Quick Client Selection

✔ Built for hygienic & sanitary plants

PFMH meets food & pharma hygiene standards (EHEDG / 3-A), ensuring bacterial-free measurement surfaces—ideal for milk, cream, beverages, WFI, broth, etc.

✔ Flush diaphragm for cleanability

No crevices → no product buildup → perfect for CIP/SIP cycles. Ensures easy sterilization at up to 150°C.

✔ High measurement accuracy

With ±0.1–0.25% accuracy, PFMH is suitable for:

  • batching

  • high-value liquids

  • pharma reactors

  • mixing vessels

  • process-critical level control

✔ Designed for low to medium tank heights

Optimized measuring ranges for hygienic tanks (0.4–10 m), ensuring excellent sensitivity at shallow tank levels.

✔ Resistant to harsh cleaning cycles

CIP chemicals and SIP steam pressure do not affect diaphragm integrity—ideal for continuous 24/7 food production.

✔ Hygienic stainless-steel process connections

Tri-Clamp, SMS, Varivent ensure easy installation in:

  • dairy plants

  • breweries

  • pharma blending

  • bioprocess lines

✔ Perfect for:

  • Milk & dairy vessels

  • Breweries & beverage mixers

  • WFI & ultrapure water storage

  • Bioreactors & fermenters

  • Hygienic chemical tanks

  • Cosmetic & personal-care industry

Category: Tag: Brand:

Description

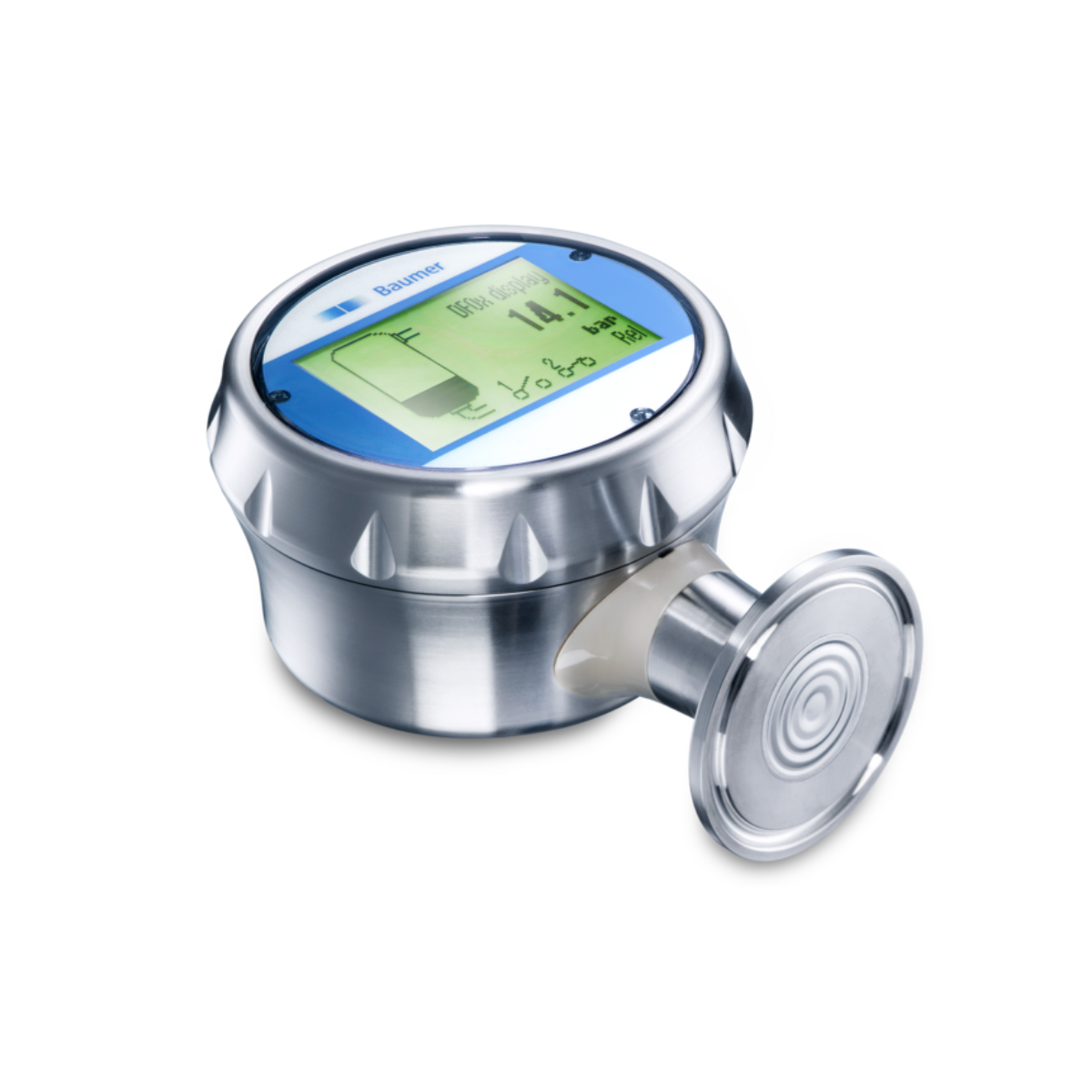

Baumer PFMH is a high-performance hydrostatic level transmitter designed for hygienic, food-grade, and pharmaceutical liquid level applications. With a flush diaphragm, stainless-steel hygienic construction, and high accuracy, it delivers stable level measurement in CIP/SIP processes, milk tanks, beverage vessels, WFI tanks, bioreactors, and sanitary storage systems.

🔧 PFMH — Key Technical Data & Selection Parameters

Parameter Specification / Details
Measurement Principle Hydrostatic pressure (piezoresistive flush diaphragm)
Measuring Range 0…0.4 m to 0…10 m water column (sanitary low-level ranges)
Accuracy ±0.1% to ±0.25% of span (high hygienic accuracy)
Output Signal 4–20 mA (2-wire), HART optional
Process Connection Hygienic: Tri-Clamp, DIN11851, Varivent, SMS
Diaphragm Material 316L stainless steel, electropolished
Surface Finish Ra ≤ 0.8 µm (EHEDG-compliant)
Temperature Range –20 °C to +150 °C (SIP-compatible)
Overpressure Capacity Typically 2× rated pressure
Protection Class IP67 / IP69K (washdown safe)
Cable / Housing Stainless steel hygienic design
Compensation Features Temperature compensation, zero-trim adjust
Special Features Flush diaphragm, SIP/CIP resistant, hygienic certification
Typical Applications Dairy tanks, beverages, WFI, pharma reactors, hygienic storage
